Mimaki Wide Format Sublimation

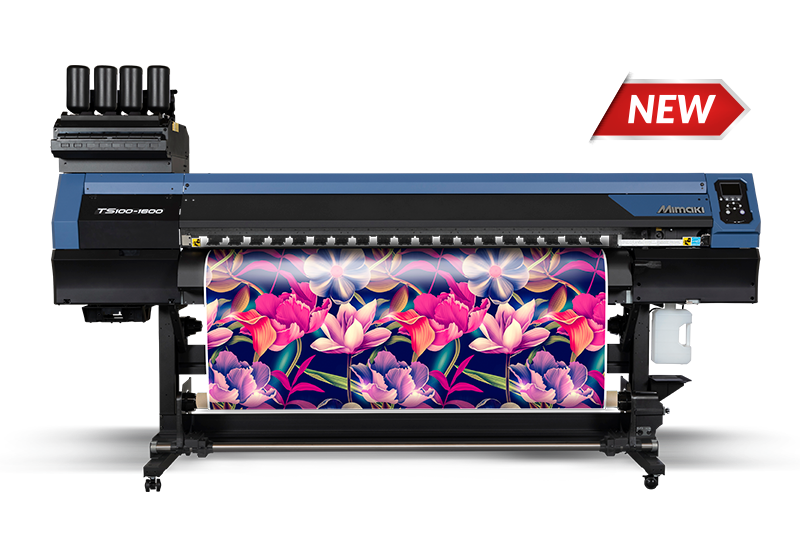

TS-100-1600 63" wide Printer
TS-100-1600 64" wide Printer
Mimaki Wide Format Sublimation
Price: $9,995.00
Entry-Level Price, Professional ResultsThe TS100-1600 is an affordable professional grade sublimation roll-based printer. Consistently and expertly print highly detailed photographic quality graphics for small to large production runs.

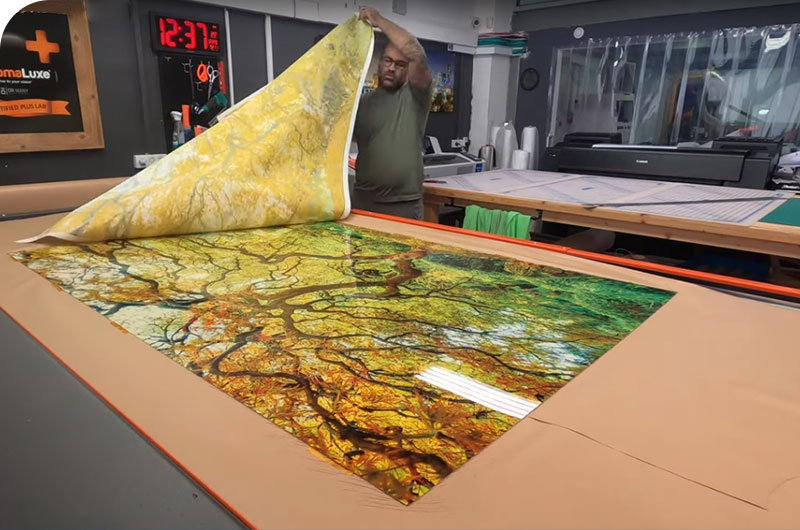

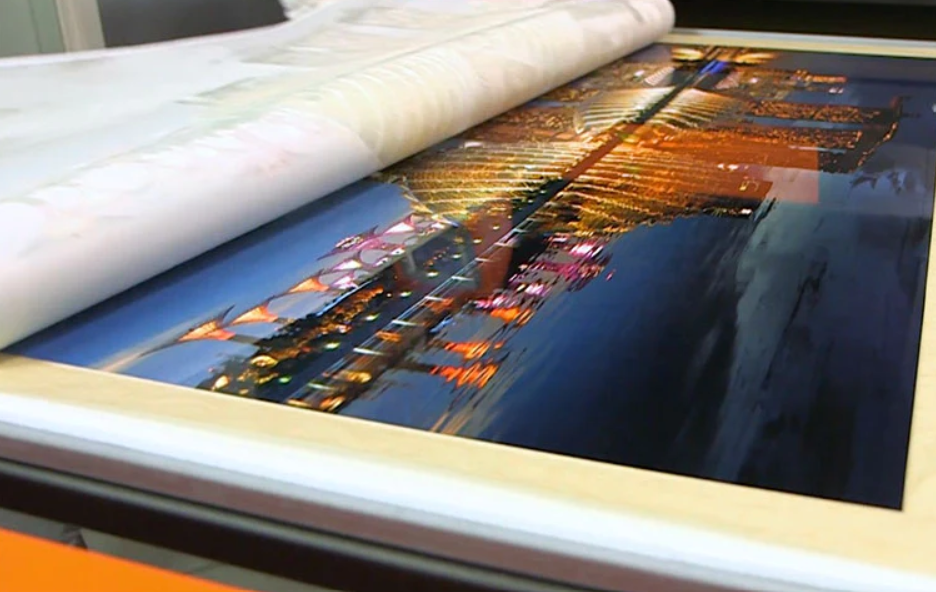

​Sublimation printing utilizes heat and pressure to transfer images directly into the surface of an object, bonding images to the substrate at the molecular level.
 Armed with decades of engineering experience and manufacturing expertise, Mimaki  developed a proprietary technology that ensures  each print   has  consistent   quality. providing  that  all photos images and fine arts maintains its vibrant and vivid colors. ​
Features of the Mimaki TS-100-1600 Wide Format Sublimation Printer
  • TS-100-1600 equipped in 64” with print speeds up to 753 Sq Ft/Hr
  • Nozzle Check Unit (NCU), automatically monitors printhead performance and detects clogged nozzles.
  • Nozzle Recovery System (NRS), automatically substitutes unproductive nozzles, avoiding unnecessary downtime and poor image quality.
  • Bulk system with Sublimation ink colors: Cyan, Magenta, Yellow and Black 2x.
  • NEW Dot Adjustment System (DAS) automatically aligns to ensure consistent quality and repeatability
  • NEW, easier to use RIP software, RasterLink7, included; reduces RIP time by 25%
  • TxLink4 Lite supported for more advanced workflows

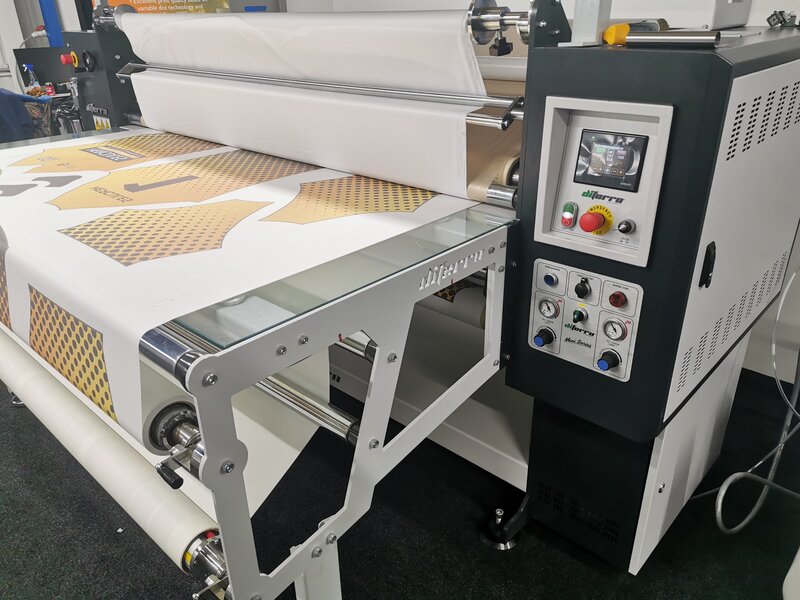

Wide Format Calander
​Sublimation   Rotary Press

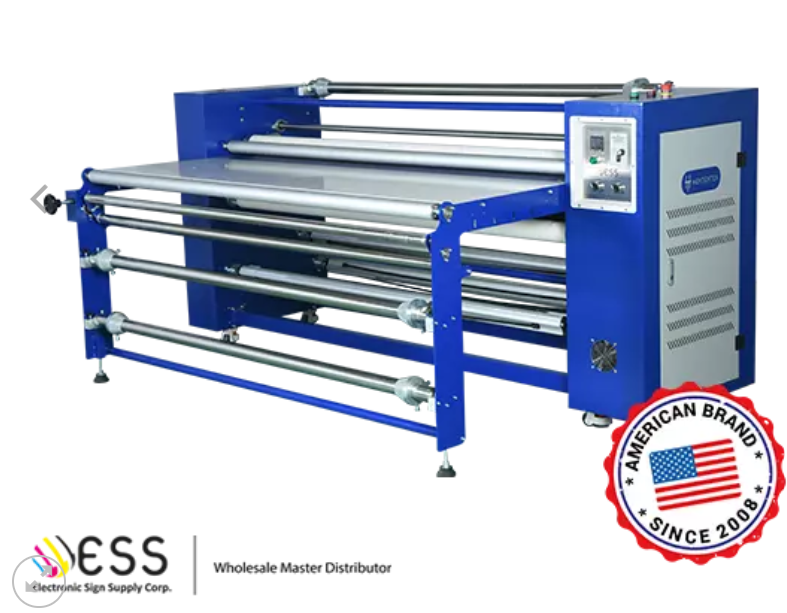

HeaterTex  67" wide Rotary Transfer
Price: $15,100.00
• Steel cylinder with Teflon surface to prevent rust and maintain uniform temperature.
​• Effective, advanced and economical heating system.
• Industrial heating system with thermal oil & Level indicator.
• Cylinder rotation speed controller.
• Digital temperature controller.
• Option to change the rotation in the cylinder movement.
• Four tension rollers for the blanket.
• Worktable for item-to-item applications.
• Automatic rollers to collect used material.

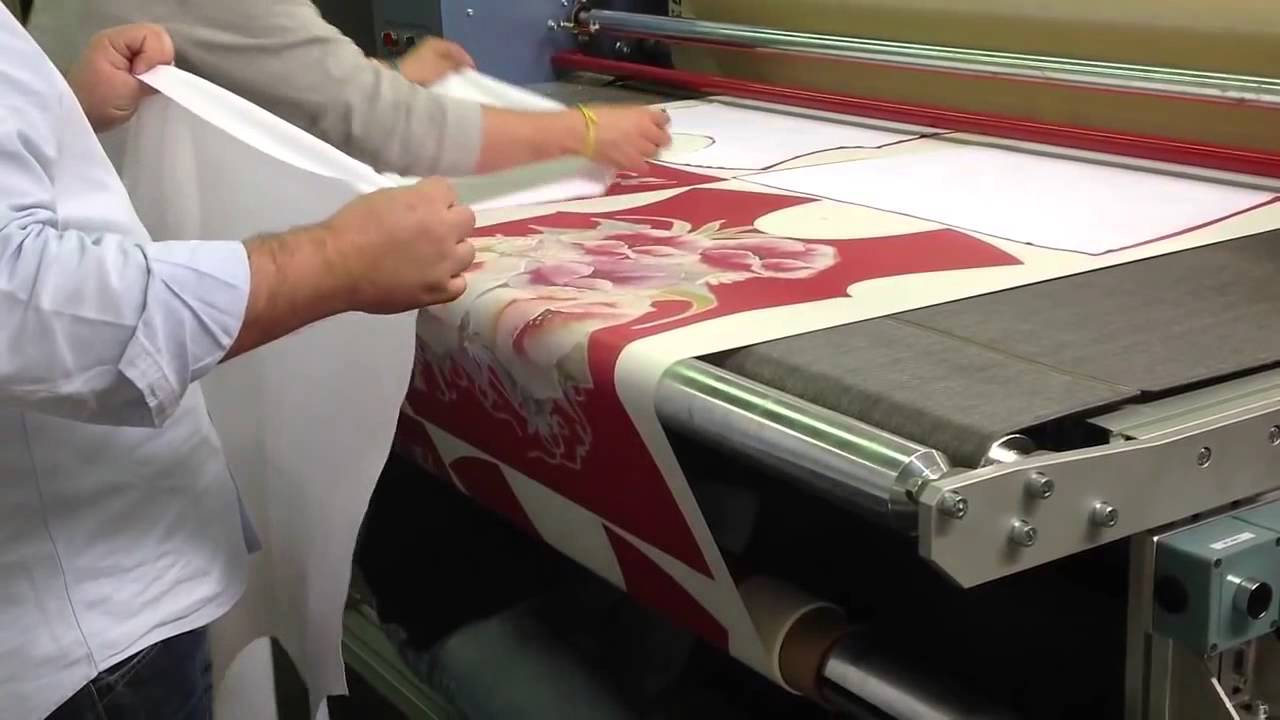

• Designed for continuous roll sublimation and item sublimation.
• Blanket protection alarm through limit sensors.
** It is the most profitable option to enter the sublimation market.
Features of the HeaterTex  Calander Rotary Press
Productivity:  19” up to 78” per min / 2mts per min
Transfer system:  Roll to Roll and Piece to Piece
Startup time:  50 / 70 minutes approx.
Dimensions:  64”x 98”x 82” / 165 x 250 x 210cm.
Weight:  1750Lb / 800Kg approx.
Max temp:    450°F / 240°C
Working table: 70” x 35” / 180 cm x 90 cm
​Size of the blanket:  68’’x 96’’ in / 1.73m x 2.43m
Belt width:    67” / 170 cm
Heat transfer principle:  Thermal oil
Thermal cylinder diameter:  9” / 23 cm
Power required:  7.7 KW
Load rollers:  3 -   Take rollers:   3
Current:    35A-40A at AC 220 V
Voltage:  220 V AC
Frequency:  50-60 Hz
Applications:   ​Dresses, Kimonos, Leggings, Flags, Curtains, Banners, Artwork, and Bedspreads.
