Aluminum Frames

Quality Aluminum Frames

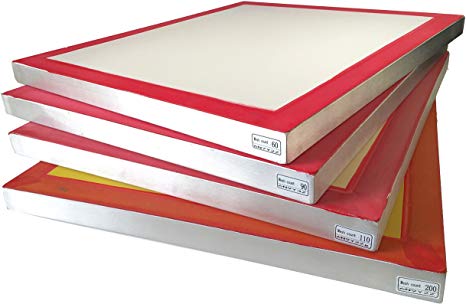

Manual Aluminum Frames 20" x 24" OD

Our Aluminum Frames are constructed with 6063T5 Alloy, each piece is hand cut, welded to insure water tight seal and ground smooth for flatness. Standard Frame profile is: 1-1/2” X 1-1/2” to produce a strong durable frame.
These frames are very light weight and will not bend over time, our stock mesh selection ranges from 40ct thru 355ct.

Automatic Aluminum Frames 23" x 31" OD

Aluminum Tag-less Label Screens - we have 2 available sizes of frames for Tagless Label machines, the tube is 3/4" x 3/4" and come with 230 & 305 mesh.

Frame size available: 9" x 14" and 9" x 20" OD

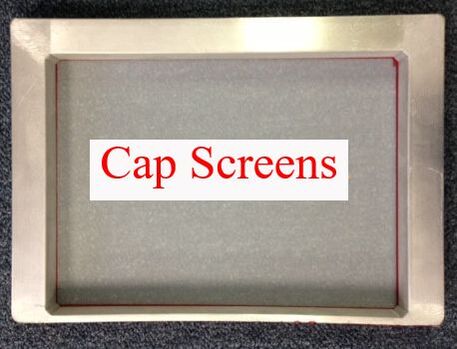

Aluminum Cap Screens for screen printing on hats with tube size: 1" x 1" and one side 1/4" &

110 & 160 mesh. Frame size: 8.5" x 12" OD

We Re-Stretch Screens

Bring us your tired, old, saggy screens for a face lift. Yes, we re-stretch screens! Don't throw away frames that can be refurbished. Call us for Pricing !
Please remove all residue of inks prior to turning your screen for re-stretching.

Screen Accessories

Hinge Clamps

Easy to use hinge clamps, constructed from cast aluminum, hold all wood or metal screens from 5/8" to 2" (1.5 to 5 cm) thick. Locking action firmly holds screens in place for positive registration. Sold in set of 2 or 4 Clamps

Screen Coating Holder is a unique device that mounts on a table, allows you to coat screens consistently and at the same angle. The screen angle is preset, so the screen printer just places the screen to be coated into the slot.

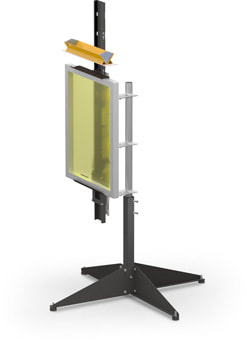

Vastex Screen Coating Support

The Vastex Screen Coater holds screen lengths 23" (60cm), 28" (70cm), 31" (80cm) and up to 36" (90cm) long, Quick, No Tools needed for height adjustment, Wall-mount hardware included and includes scoop coater shelf. **Optional Stand and Casters available

C-1000 Semi-Automatic Screen Coater

Accommodates screens as small as 10 in. (25 cm) and up to 36 in. (90 cm) in height with virtually no width limitation,

Spring-loaded clamp securely holds wood, aluminum and re-tensionable frames up to 11 lbs. Digital control allows setting for specific coating speed that provides consistent results.

Powerful motor provides smooth motion and handles heavy screens, No tools needed to make height or screen length adjustments, Space-saving wall-mount with hardware as standard, Quick height adjustment, Includes scoop coater shelf, Foot pedal operation & Available in 110- or 240-volt.

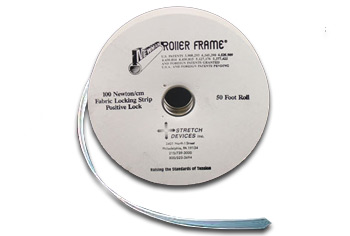

Newman Roller Frames

Newman Roller Frames & Accessories

Ready for the next level? Newman Re-tensionable screens provides the ultimate tension for top quality prints.
Available sizes for Manual printers: MZX 18x20 ID & MZX 23x31OD with Square Bar
Available sizes for Automatic printers: M3UL 23x31 OD & M3UL 25x36 OD

MZX Re-tensionable Frames. MZX 18x20 ID are equipped with a Square Bar for manual presses with Rear Holder. MZX 23x31 OD is equipped with All Rollers for Manual Presses with Side Holder.
*Mesh and Accessories are sold separately.

M3-UL Re-tensionable Frames are the perfect the design for the Automatic presses. Thicker Aluminum rollers to prevent warping. Available in 23x31 OD in All-Rollers design.
*Mesh and Accessories are sold separately
